DG Start/Stop Sensing Wire Check in SPS

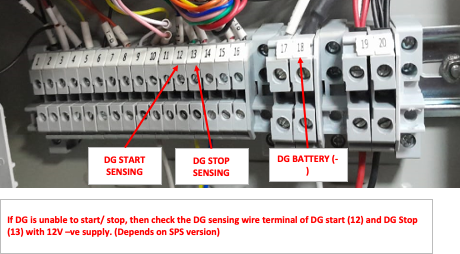

If DG is unable to start, then check the DG sensing wire terminal of DG start (12) and DG Stop (13) with 12V –ve supply. DG should be start/ stop. (Depends on SPS version)
