9-Channel Relay Card Check

9-Channel Relay Card Check

Notes
Step-1:

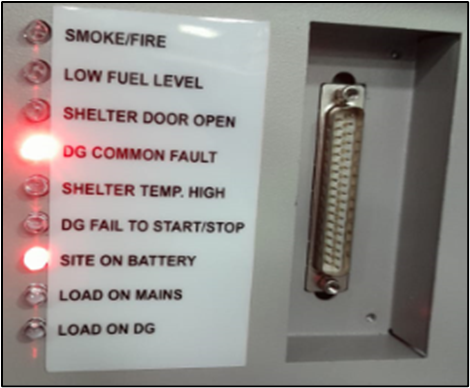

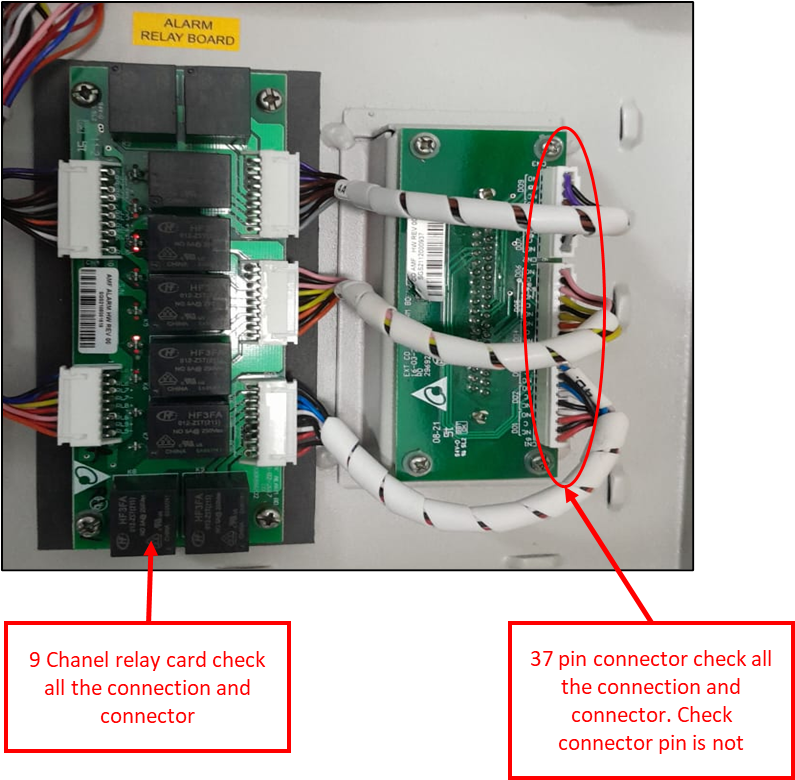

Now check the 9-channel card status.

Notes
If Found not ok Condition:

Check the physical status of 9-Channel relay card if it is found not ok condition then issue a complaint against 9-Channel relay card faulty and part code is: 5505604526




Notes
If found ok condition:

Check the physical status of 37 Pin alarm card if it is not ok then issue a complaint against 37 pin alarm card faulty and part code is: 5501900274.

If physical status of 37 pin alarm card is ok condition, then check the continuity on every alarm terminal NO, C, point in ok condition and ask to technician declared the alarm cable faulty that is not in delta scope.
